BDL9870EU |
| Picture/Display |
| • Diagonal screen size: 98 inch / 247.7 cm |
| • Panel technology: IPS |
| • Optimum resolution: 3840 x 2160 @ 60Hz |
| • Brightness: 500 cd/m² |
| • Contrast ratio (typical): 1300:1 |
| • Dynamic contrast ratio: 500,000:1 |
| • Aspect ratio: 16:9 |
| • Response time (typical): 8 ms |
| • Pixel pitch: 0.5622 x 0.5622 mm |
| • Display colors: 1073 M |
| • Viewing angle (H / V): 178 / 178 degree |
| • Picture enhancement: 3/2 - 2/2 motion pull down, |
| 3D Combfilter, 3D MA deinterlacing, Dynamic |
| contrast enhancement, Motion compens. |
| deinterlacing, Progressive scan |
| Connectivity |
| • Video input: VGA (Analog D-Sub), DisplayPort |
| (1.2), DVI-D, HDMI (x3), Component (BNC), |
| Composite (BNC) |
| • Video output: DisplayPort |
| • Audio input: 3.5 mm jack |
| • Audio output: 3.5mm jack, External speaker |
| connector |
| • External control: RS232C (in/out) 2.5 mm jack, |
| RJ45 |
| • Other connections: USB |

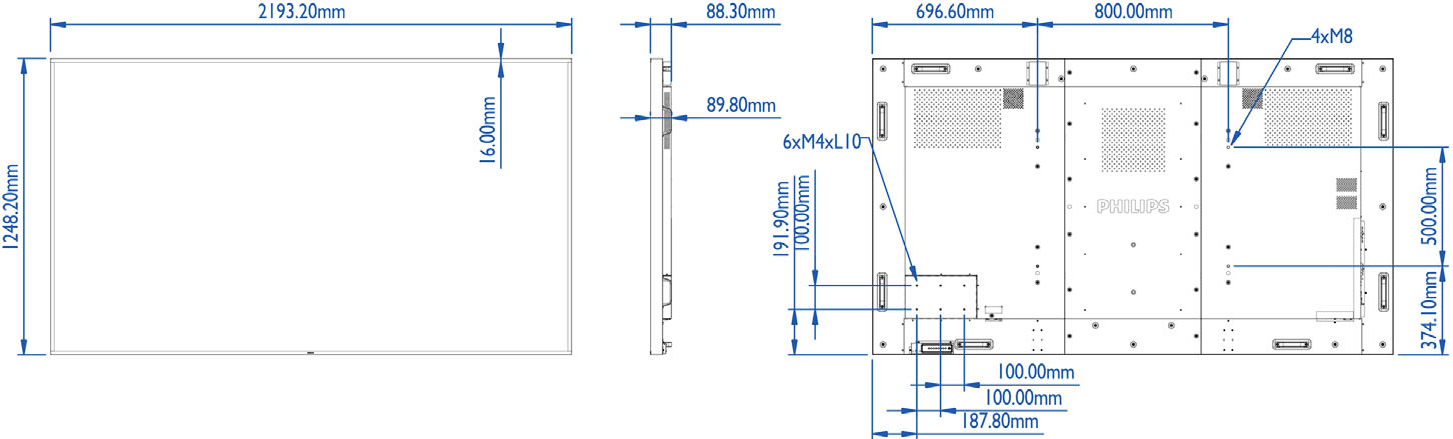

| Dimensions |
| • Set dimensions (W x H x D): |
| 2193.20 x 1248.20 x 89.8 mm |
| • Bezel width: 16.0 mm |
| • Product weight: 91.4 kg |
| • VESA Mount: 800 x 500 mm, M8 |
| • Smart Insert mount: 100 x 200 mm, M4 |
| Convenience |
| • Placement: Landscape, Portrait |
| • Network controllable: RS232, HDMI (One Wire), |
| LAN (RJ45) |
| • Signal Loop Through: RS232, DisplayPort |
| • Energy saving functions: Smart Power |
| • Remote control signal: Lockable |
| • Keyboard control: Hidden, Lockable |
| • Ease of installation: Smart Insert |
| • Other convenience: Carrying handles |
| • Screen saving functions: Pixel Shift, Low Brightness |
| Power |
| • Mains power: 100 ~ 240 VAC, 50 ~ 60 Hz |
| • Consumption (Typical): 500 W |
| • Standby power consumption: <0.5W |
| Sound |
| • Built-in speakers: 2 x 10W RMS |
| Operating conditions |
| • Temperature range (operation): 5 ~ 40 °C |
| • Temperature range (storage): -20 ~ 60 °C |
| • Relative humidity: 20 ~ 80 % |
| • MTBF: 50,000 hour(s) |
| Accessories |
| • Included accessories: AC Power Cord, Batteries |
| for remote control, Quick start guide, Remote |
| Control, User manual on CD-ROM, RS232 cable, |
| HDMI cable |
| Miscellaneous |
| • On-Screen Display Languages: English, French, |
| German, Italian, Polish, Russian, Spanish, Turkish, |
| Simplified Chinese, Traditional Chinese, Arabic, |
| Japanese |
| • Regulatory approvals: CE, UL/cUL, CCC, C-Tick, |
| RoHS, GOST, FCC, Class A |
| • Warranty: 3 year warranty |
